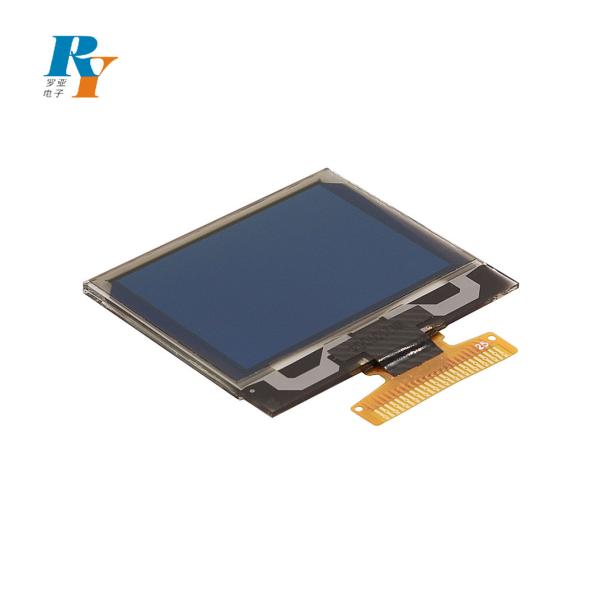

128X128 OLED Display Module Mono Cog 25 Pin Parallel I2c 1.5 Inch

Name: 128X128 OLED Display Module Mono Cog 25 Pin Parallel I2c 15 Inch
Brand: Royal Diaplay
Price: 1 USD

Wholesale 128X128 OLED Display Module Mono Cog 25 Pin Parallel I2c 1.5 Inch from china suppliers

Brand Name : Royal Diaplay

Model Number : RY-2864KSWNG01

Certification : ISO Rohs

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 300k/Month

Delivery Time : 20-28 work days

Packaging Details : Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba

DOT Matrix : 128(W)X128(H)

Display : OLED(Yellow/White)

Module Size (mm) : 33.8(W)X36.5(H)X1.41(D)

Active Area(mm) : 26.86(W)X26.86(H)

Driver IC : SSD1327z

Pins : 24

Contact Now

1.5 Inch 128X128 OLED Display White Yellow Mono Cog 25pin Parallel/I2c

PRODUCT DESCRIPTION

Item	Description
Dot Matrix	128X128
Duty	1/128
Frame Rate	100Frames/Sec
Brightness	100(min)cd/m2
Pixel Pitch(mm)	0.21(W)×0.21(H)
Pixell Size(mm)	0.19(W)×0.19(H)
Interface	Parallel / I2C 4-wire SPI
Operating Temp.	-40º C~70ºC
Storage Temp.	-40º C~85ºC

MORE OLED DISPLAY

PRODUCT APPLICATION
Our OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.

128X128 OLED Display Module Mono Cog 25 Pin Parallel I2c 1.5 Inch

OUR SERVICE ADVANTAGES

1.Small order would be accepted.

2.Mass production lead time would be guaranteed.

3.Each order will have 0.2%-0.5% spare.

4.Even customers do not have a cooperation with us, we also can provide technical services.

5.If mass production has any quality problem, customer can return it.

128X128 OLED Display Module Mono Cog 25 Pin Parallel I2c 1.5 Inch
